San Martin Diver Retro Luxury Men Watch SN076G

Hello everyone, today I will share with you the new watch San Martin Diver Retro Luxury Men Watch SN076G. This watch has also been repeatedly modified many times.

The design and details of this San Martin Diver Retro Luxury Men Watch SN076G are introduced in detail below. Now our designs are generally designed with the case as the center, determine the style and appearance of the case, and match the hands, dials, and straps. This case refers to the Nautilus style of PP as a whole, and we also added many new details of our own design.

We mainly talk about the details of our own design: 1.3 o’clock is the pig’s mouth protector, 9 o’clock is also convex and symmetrical, and the nautilus ring is connected to the pig’s mouth structure. We relatively simply do it on the case, and the bezel is split The structure is tightly held on the case; 2. We make a circular design on the inside of the bezel, and install I to make the waterproof ring structure stronger (we design it according to the 200-meter waterproof level). Appearance grinding process, straight body position and oblique position polishing and grinding, front ring with round sand; 3. The longitudinal length is shortened (the length of the lugs) and the body extends straight to the lugs; Nails, grooves filled with luminous process, echoing the oval design of the hands; 5. The dial is made of horizontal lines with hydraulic abrasives, the metal self-nail logo is installed on the platform at 12 o’clock, and the platform is printed at 6 o’clock.

Process details: 1. The case body is straightened with sand, and polished at an oblique position; the case surface is straightened with sand, and the ear surface is straightened with sand. The body and the inner side of the ear are made of sand, and the connecting steel belt structure is not an ordinary raw ear structure but a child-mother connection structure; the plane and bevel of the bottom cover are made of round sand; the bezel is straight and obliquely polished and polished, and the front ring is round Sand; 2. The real three-bead structure of the strap (I-shaped beads), the middle bead is polished and polished, the edge bead is sanded, the outer edge of the edge bead is chamfered and polished; 3. The dial hydraulic abrasive is made of horizontal lines, 12 The metal self-stapling logo is installed on the platform at the point position, and the platform is printed at the 6 o'clock position. The time scale of the dial is moulded to make oval long nails, and the grooves are filled with luminous technology, which echoes the oval design of the hands; 4. The hands are independently moulded to make a three-dimensional needle shaft process, the needle surface is curved design, and the needles are patterned and electroplated with GS. kind of craft.

Summarize myself: The style refers to the design of the big brands, and also adds some small details of my own design. Try to make everyone recognize the overall style and have some elements of your own in it. (Dozens of artworks have been designed repeatedly)

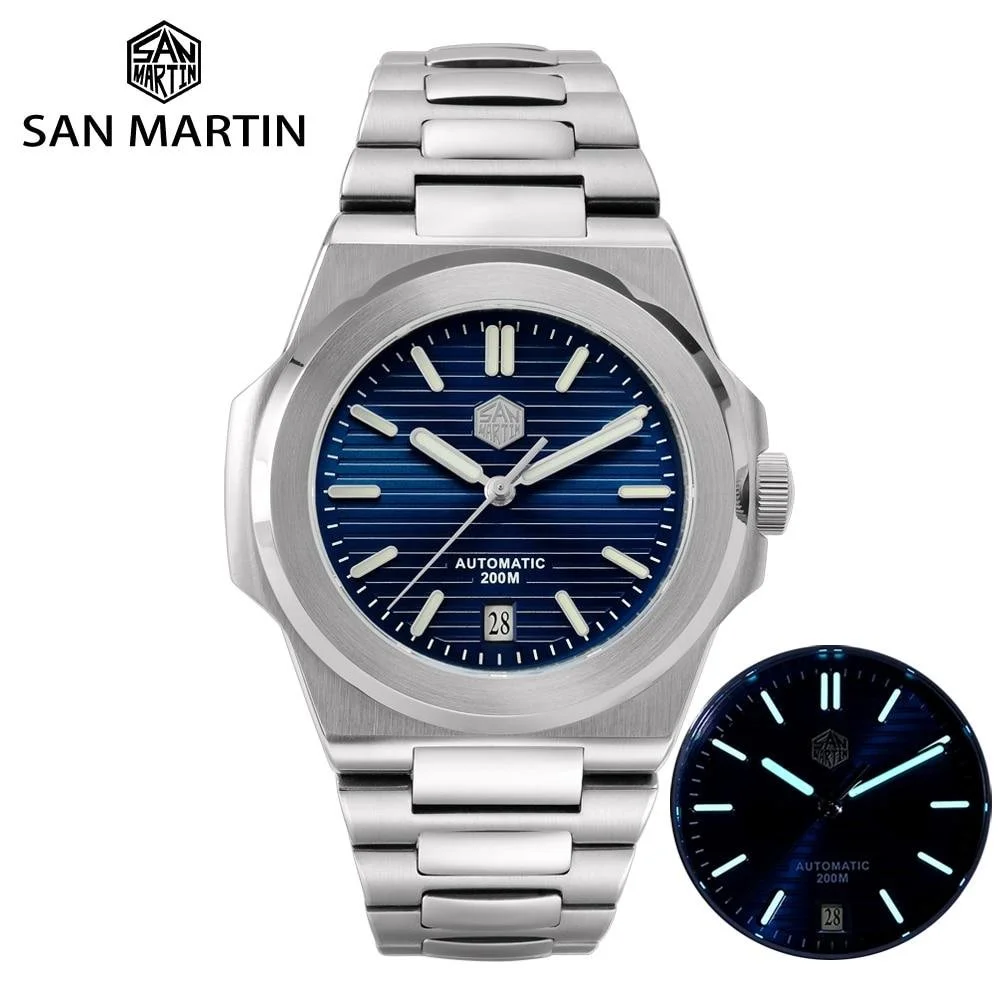

San Martin Diver Retro Luxury Men Watch SN076G

Watch Specification:

Model: SN076-G
Movement: PT5000
Case: Material - 316L Stainless Steel
Glass: Sapphire Crystal Glass, Swiss AR Coating
Dial Color: Sunray Blue, Matte Black, 3D Hexagon Applique Logo,Horizontal Stripes
Hands: Curved Hands Craft, Luminous Coating
Luminous: BGW-9 Blue Light
Crown: Screw-down Crown,
Case Back: 316L Stainless Steel Solid Screw-down Case Back
Strap: 316L Stainless Steel Solid Bracelet
Clasp: Folding Clasp With Safety, With San Martin Hexagon Logo
Water Resistant: 20Bar=200 meters
Watch Dimension:
Case diameter:42mm (without crown)
Case length: 44mm( lug to lug)
Case thickness: 11mm
Lug width 13mm
Weight: about 140g
