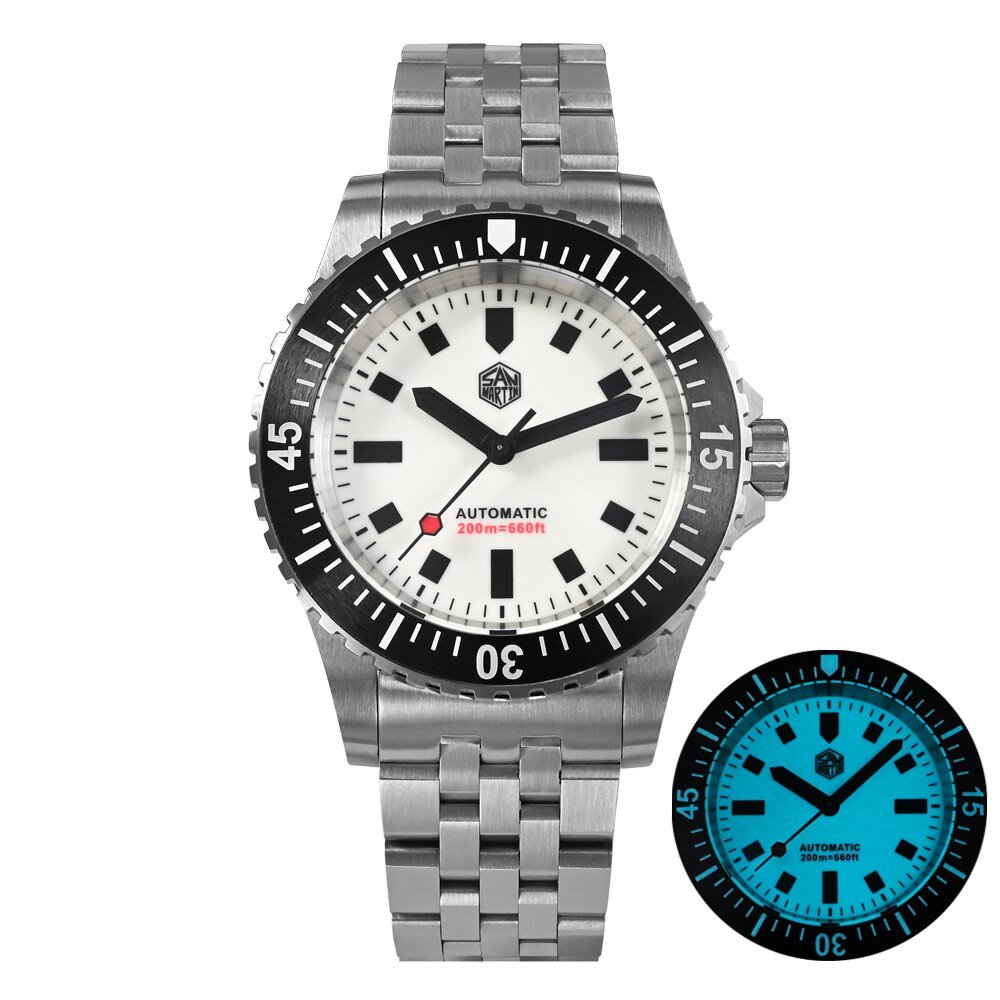

San Martin Men Diving Watch 41mm Original Design SN012-G
07.07.2022 | San Martin Watch Store | News & Blogs

Hello everyone, today I would like to share with you the introduction of SN0012. There is a small video of a case that was shot separately and shared with you. Today, I will introduce the table forming process.

A relatively small original design, the case, strap, and buckle are all polished by the sanding process, reflecting the surface line polishing process. The dial chooses the classic black and white color, with white full luminous printing, and the hour markers and tick marks are printed in black. The hand adopts the classic pencil needle shape, and the second hand cooperates with our hexagonal logo to make a hexagonal luminous window.

San Martin Men Diving Watch 41mm Original Design SN012-G diameter of the case is 40mm, the diameter of the bezel is 41mm, and the vertical length is 52mm. Many watch friends recommend making the vertical length smaller, which will better fit the wrist, especially watch friends with smaller wrists. In fact, I personally think that the problem of fitting the wrist depends on the cooperation of three factors: 1. The longitudinal length of the case; 2. The bending angle of the lugs; 3. The structure of the strap, the way the head bead falls (there are all fall, half fall and no fall three beads). Although the longitudinal length of SN0012 is slightly longer than other styles, the downward bending angle of the lugs is relatively large, and the strap is also a full-drop structure, so you can stick it to your wrist like a watch friend with a small wrist.

The following is an introduction to the case process:

The craftsmanship of this case is relatively simple, all of which are sandblasting and do not require CNC machining. Most case processing factories can do it, and the overall look is similar. But there are often many different places to look at the details, and we often spend more costs in pursuit of those details.

The high-demand grinding method of the case (steel case) will always be invincible (keeping a clear sense of lines without scratching). This shell can reflect several points of details: 1. The handover of the pig's mouth at three o'clock, because the pig's big body ensures that the line chooses the sand technology of heaven and earth, the upper and lower slopes of the pig's mouth are straightened, and the pig's mouth is flat. Tiandisha, the intersection of the two Tiandisha and the two straight sands is clear and unclear to reflect the details of the craftsmanship; 2. The intersection line between the body, the shell surface and the shell bottom, on the one hand, the intersection line should be clear and unfavorable, and the intersection line should also be smooth. 3. The junction line between the ear surface and the body is beautifully made like a very thin line that slides down from the top, and the base will be thicker downward, and there is a small arc at the intersection; 4. The outer teeth of the bezel Tiandi sand process, inner sandblasting process, good effect, the intersection of external teeth and beveled surface is clear, the intersection of external teeth and beveled round sand is clear, no light leakage and no drape; 5. Straight sand on the ear surface does not exist at the root. The sand did not hit the situation.

The strap adopts a five-baht solid steel belt structure, and the plane, bottom and sides are all done with a horizontal sanding process to echo the polishing effect of the case.

The dial uses two surface effects, matte black and BGW-9 luminous surface (matte white). The classic black and white color matching, the second hand and the dial sub-mark are printed with a little red to play a finishing touch.

This is a niche original design without reference to big brands, I hope everyone likes it.

San Martin Men Diving Watch 41mm Original Design SN012-G

Watch Specification:
Model: San martin SN012-G
Movement: Miyota 8215 [Automatic mechanical movement]
Case: Material - 316L Solid Stainless Steel
Glass: Sapphire Crystal Glass, AR Coating
Bezel: Matte Black Brushed Ceramics Bezel
Dial Color: White Full Lume Dial, Matte Black Dial, Printed Hour Markers
Hands: Sword Hands Set,Hexagonal Second Hand, Luminous
Luminous: BGW-9 Blue Light, Hands and Markers
Crown: Screw-down Crown,With San Martin Hexagon Logo
Case Back: Screw-down Case Back, Brushed Process
Strap: 316L Solid Stainless Steel 5 Links Engineering Style Bracelet
Clasp: New Folding Clasp With Safety, With 3D Hexagonal Logo
Water Resistant: 20Bar=200 meters
Weight: about 165g
Watch Dimension:
Bezel 41mm
40mm in diameter
Lug to Lug 50.5mm
Thickness 13mm
Band width 20mm
